ZKCS series Full computer vacuum transfer type high speed multiple-color printing varnishing drying
ZKCS series Full computer vacuum transfer type high speed multiple-color printing varnishing drying
Detail

Function and Characteristics:


△  Computer order storage and adjustment, faster order update and convenient operation.

△  Complete machine wallboard and other important pieces are all made by high precision process center and grinded by digit-controlled grinder.

△  All the transmission axle and rollers are made of high-quality steel with high-precision dynamic balance, plated with rigid chrome and grinded surface.

△  The transmission gear adopts the high-quality steel, which is grinded after heat-treatment, after long use, it still maintains the high topping precision.

△  The main machine transmission parts adopt the hand-free connection ring to eliminate the interval, suit able for long-term high speed printing.

△  The whole machine undergoes the spray lubrication and is equipped with engine oil automatic balance facilities.

△  It possesses the print, die-cutting, slotting memory function, which could return to Zero and Re-set automatically.

△  PCLINK control network, MCGS software, Siemens low voltage electric appliance and host frequency conversion control, 30% electricity saving.

△  Double axle slotting to configure whole machine production management computer control system and single axle slotting to configure whole machine production management computer control system.

△  Customer can chose use steel anilox roller or ceramic roller,the lines of the anilox roller ac so can be chosed accord the customer use .


Name of parameter

ZKCS-200-900

ZKCS-200-1200

ZKCS-200-1400

Color Group

Everything can be quipped according to   users’ needs

Printing Paper

A、B、C、A/B、B/C and   A/B/C corrugated cardboard

(Max.gap 11mm)

Production Speed

200Pieces/min

200Pieces/min

200Pieces/min

Economy speed

190Pieces/min

180Pieces/min

190Pieces/min

Max.Paper Sizes

900×1800/2000

2200/2400/2600mm

1200×1800/2000

2200/2400/2600mm

1400×1800/2000

2200/2400/2600mm

Min.Paper Sizes

Positive knife

300×640mm

350×720mm

400×720mm

negative knife

300×720mm

350×740mm

400×740mm

Max.Pringing Sizes

900×1600/1800

2000/2200/2400mm

1200×1600/1800

2000/2200/2400mm

1400×1600/1800

2000/2200/2400mm

Max die-cutting size

900×1700/1900

2100/2300/2500mm

1200×1700/1900

2100/2300/2500mm

1400×1700/1900

2100/2300/2500mm

Standard Printing Plate Thickness

7.2mm

Slot Width×Max.depth

7mm×220mm

7mm×300mm

7mm×350mm

Min.Slot Space

Positive knife

150*150*150*150mm

170*170*170*170mm

170*170*170*170mm

negative knife

250*90*250*90mm

260*90*260*90mm

260*90*260*90mm

Printing Roller Dia.

(Plus Printing Plate Thickness)

300mm

408mm

480mm

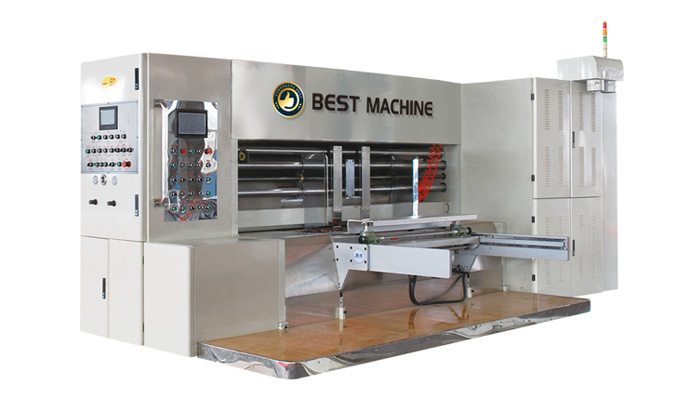

Feeding Unit


△  Edge-leader feeding system: adopt smaller press edge-leader feeding system, friction between paperboard and the platform,Chinese

advanced technology,with character of protecting original strength of paperboard ,avoiding damaging the corrugate and avoiding pressing to thin. It is good to transport smoothly after pressing line,with stable system,feeding quickly and precisely,suitable for all kinds of corrugated paperboard.

△  Vacuum absorption to assist feeding,the air volume and air press can be adjusted as the paperboard size.

△  Electrically adjust the left block and back block box,with pneumatic patting equipment,to make the paperboard position more precisely.

△  10.4inch colorful touch screen control feeding part,printing part,slot part,die-cutter part,can return zero once,memorize order,memory reset,production speed 60,90,120 Constant speed cruise,infrared ray photoelectric counting,pre-set quantity of the order.

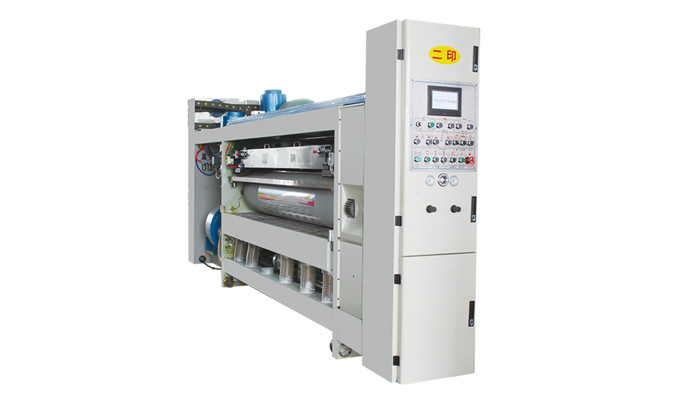

printing Unit


△ Printing roller and driving roller adopt good quality steel,computer dynamic balance,eliminate the off-center force, grinded face and chrome plated.

△ Printing roller adopt holding plate equipment:Ratchet wheel Fixed type the holding plate roller,whole plate holding groove,foot step electric control positive and negative rotate,install and uninstall the plate quickly and conveniently.

△ Whole sealed double scrape blade system,no dust, back ink quickly,scraping ink effect is very good.

△ Ink anilox roller : Ceramic anilox ,laser carved,can choose 300-800 line. )

△ Printing phase and axial direction adjust : phase adjusting adopt planet type gear configuration, PLC touch screen and electrical digital in 360 degree (can adjust both run and stop),converter motor drive,change rotating speed of roller as requirement,precision is 0.1mm,quick and convenient,printing roller moving axially adopt PLC touch screen and electrical digital to adjust,adjusting arrange is 10mm.

△ Through ink roller gap,printing pressing roller,paper-leading roller gap adopt double grade worm wheel box to adjust, gravimetric show digital,(0-10mm) convenient to adjust and with self-lock funtion.

△ Option: drying system, improve effect,to insure the printing effect.

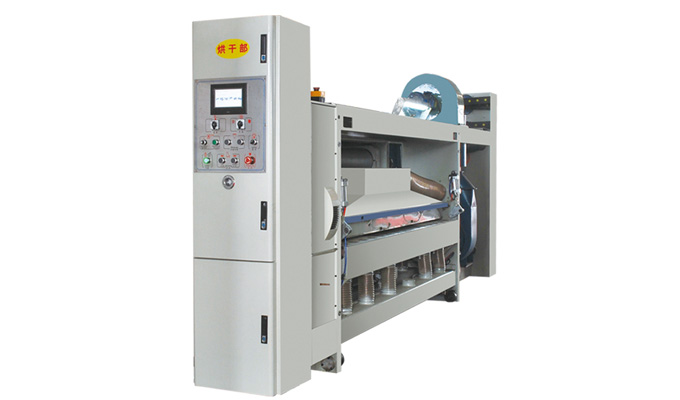

Drying unit


△ Separated vacuum transport,to insure the transport precision

△ Help drying,suitable shining slotting and die-cutting,good match quality.

△ The adjustable drying temperature control system.

△ Infrared ray drying system(ultraviolet ray option)

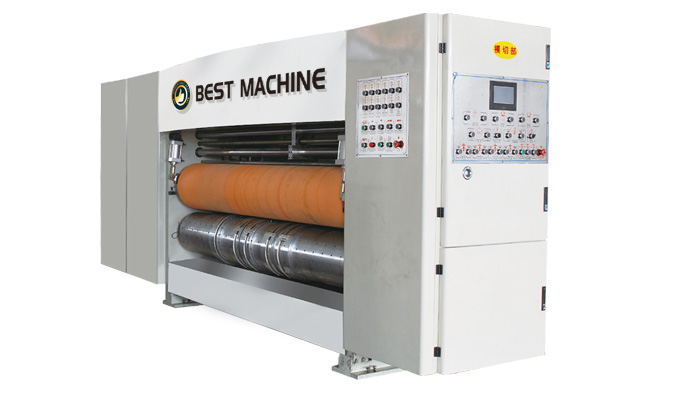

Die-cutter unit

△ Rubber roller:off-cutter casting steelpipe,computer dynamic balance, Steel pipe face is grinded and chrome plated,adopt mechanical crosswise ±20mm moving equipment,to improve the using life of the rubber.the speed different automatic compensate equipment,is used for correcting die-cutter error because the rubber wear and tear.double grade worm box adjust gap,gravimetric show digital,convenient to adjust ,with self-lock equipment.

△ Die-cutter roller:off-center casting steel pipe,

△ Separated vacuum transport,to insure the transport precision

△ Help drying,suitable shining slotting and die-cutting,good match quality.

△ The adjustable drying temperature control system.

△ Infrared ray drying system(ultraviolet ray option) computer Dynamic balance, Steel pipe face is grinded and chrome plated(option: free mould die-cutter slot steel blade mould ,slot and cut corner for common carton with funtion of adjusting carton height synchronous )

△ Die-cutter roller phase and axial adjust: Planet type gear configuration adjust phase, PLC touch screen and electrical digital in 360 degree,converter motor drive,axial moving adjusting adopt PLC touch screen and electrical digital ,arrangment is 15mm.

△ Rubber roller repairing configuration,rubber can be used for many time,save the cost largely.

△ Automatic clean the waste equipment: smoothly take away the waste from the slotter and die-cutter unit.
